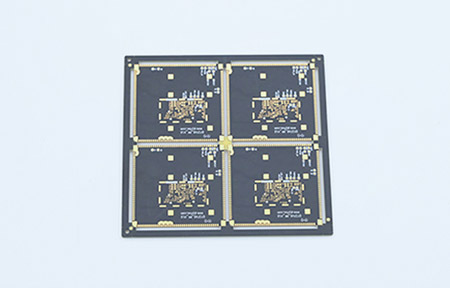

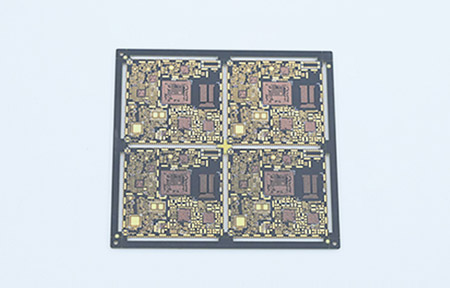

Multi-layer through hole PCB
Advantages: High assembly density, small size, and light weight. Due to the high assembly density, the wiring between components (including electronic parts) is reduced, thus improving reliability; It can increase the number of wiring layers, thereby increasing design flexibility .....
Phone:15361676619
Advantages of multi-layer PCB: high assembly density, small size, and light weight. Due to the high assembly density, the connections between components are reduced, thereby improving reliability; the number of wiring layers can be increased, thereby increasing design flexibility; a circuit with a certain impedance can be formed; a high-speed transmission circuit can be formed; circuit and magnetic circuit shielding layers can be set, and a metal core heat dissipation layer can also be set to meet the needs of special functions such as shielding and heat dissipation; simple installation and high reliability.
| material | FR-4 | Number of layers | 10 layers of metal edging |
| copper thickness | 1oz | Plate thickness | 3.0mm |
| Minimum aperture | 0.1mm | Min. trace spacing | 0.065mm |
| Min. trace width | 0.065mm | Surface Treatment | Immersion Gold |
