Multi-layer through hole PCB

Number of layers: 18 layers; Material: FR-4; Process: immersion gold; Min. drilling: 0.3mm; Min.trace width: 0.15mm;  Min. trace spacing: 0.15mm


Online

Phone:15361676619

  • Product Details

Product introduction

Because the finger-like solder pads that connect to the metal springs in the card slots require high surface wear resistance and conductivity, they are plated with a layer of nickel and gold, commonly known as gold fingers.

The contact and conduction between the gold fingers and the springs in the card slots allows interconnection between the external PCB and the motherboard, while also facilitating easy removal and replacement based on user performance requirements.

Gold-finger circuit boards are typically thick, hard gold, also known as plug gold plating, and do not refer to full-board gold plating or flexible circuit boards. This type of gold is characterized by its hardness, allowing for very thick plating and durability. Often, the term "gold-finger card boards" refers to this type of board.

Hard gold offers greater wear resistance and can withstand 20,000 plug-in and pull-out cycles without affecting quality. It requires a thickness of at least 5U. However, hard gold processing is relatively complex, and the high thickness required consumes more gold salts, leading to high costs.

It is often used in devices that require frequent plugging and unplugging, such as graphics cards, memory modules, expansion cards, and communication device interfaces.


Product parameters

materialFR-4Number of layers18
copper thickness1ozPlate thickness1.6mm
Minimum aperture0.3mmMin. trace spacing0.15mm
Min. trace width0.15mmSurface TreatmentENIG + Gold Finger

Product display

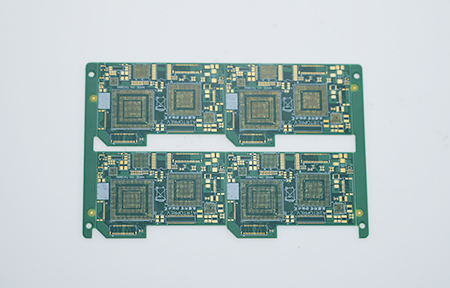

  • 高密度HDI板展示一

    HDI盲埋孔线路板展示一

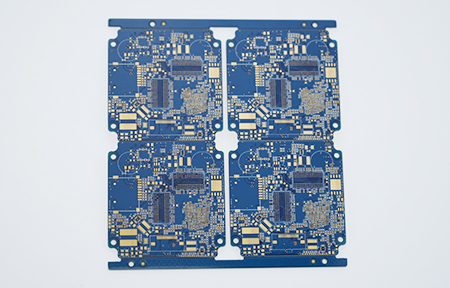

  • 高密度HDI板展示二
