8-layer 2nd order HDI PCB for laptop

HDI blind & buried via PCB

Number of layers: 8 layers; Process: immersion gold; Min. drilling: 0.1mm; Min. trace width: 0.75mm; Min. trace spacing: 0.75mm

Online

Phone：15361676619

Product Details

Product introduction

Features: high thermal conductivity, rapid heat dissipation. To ensure product quality, starting from the raw materials, the base material uses Shengyi/Jiantao and other A-grade military materials, solar ink, etc.

Product parameters

material	FR-4	Number of layers	8 layer 2nd order
copper thickness	1oz	Plate thickness	1.8mm
Minimum aperture	0.1mm	Min. trace spacing	0.075mm
Min. trace width	0.075mm	Surface Treatment	Immersion Gold

Product display

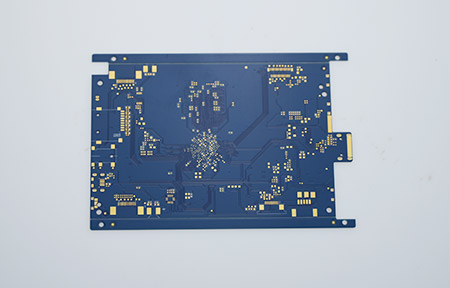

多层通孔板展示一

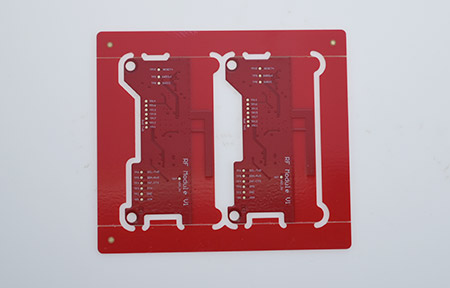

多层通孔板展示二
多层通孔板展示三
多层通孔板展示四
多层通孔板展示五
